Digital PID Temperature Controller Set, High Accuracy Small Overshoot Fast Temperature Control Temperature Controller AC 100-240V For Chicken House

Digital PID Thermostat Set Thermocouple Heat Sink Relay Temperature Controller Set with Bracket for Farm Chicken House<br/>Specification:<br/>Item Type: Digital PID Thermostat Set<br/>Material: Plastic<br/>1.Model: REX C100FK02 V DA<br/>2.Measurement Accuracy: ±0.5%FS<br/>3. Cold End Compensation Tolerance: 0-50 degrees Celsius , Can Be Modified By Software ±2 degrees Celsius <br/>4. Resolution: 14 Bits<br/>5. Sampling Period: 0.5 Seconds<br/>6. Power Supply: AC 100-240V 50 60HZ<br/>7. Process Value PV, Set Value SV<br/>8. Output, Alarm and Self Tuning Can be Indicated by: LED<br/>9. PIN Control Including ON or OFF, Step PID and Continuous PID<br/>10. Self Adjusting Control<br/>11. Time Delay Output: Contact Capacity 250V AC 3A Resistive Load<br/>12. Alarm Function Output: None<br/>13. Proportional Band P: 0 to Full Range When ON or OFF Control is Set to 0<br/>14. Detection Temperature Range: 0-400 degrees Celsius <br/>15. Insulation Resistance: > 500M Ohm 500V DC<br/>16. Insulation Resistance: 1500V AC / Min<br/>17. Insulation Resistance: Power Consumption <10VA<br/>18. Service Environment: 0-50 degrees Celsius <br/>19. Non Corrosive Gas Environment 30-85% RH<br/>20. Temperature Input Type: K Type Thermocouple<br/>21. Appearance Size: Approx. 48x48x110mm / 1.9x1.9x4.3in <br/>22,. Scope of Application: Electric Power, Chemical Industry, Injection Molding, Packaging, Food, Incubator, Oven, Heater Control, etc.<br/> K Type Thermocouple Probe Cable<br/>1. Length: Approx. 1m/1.1yd<br/>2. Sensor Diameter: Approx. 4.5mm/0.18in<br/>3. Temperature Range: 0-400 degrees Celsius <br/>4. Inner Insulation: Glass Fiber<br/>5. External Shielding: Insulation <br/>Solid State Relay<br/>1. Output Voltage Range: Standard Type<br/>2. Input Voltage: DC 3-32V<br/>3. Output Voltage: 24-380V AC<br/> Heat Sink<br/>Material: Aluminum<br/>Size: Approx. 80x49x50mm / 3.1x1.9x2.0in <br/><br/>Package List:<br/>1 x Thermostat1 x Thermocouple1 x Heat Sink1 x Relay1 x Chinese And English Manual1 x Thermostat Bracket <br/><br/>Note:<br/>All data are measured manually, and there are certain errors in the measurement results.

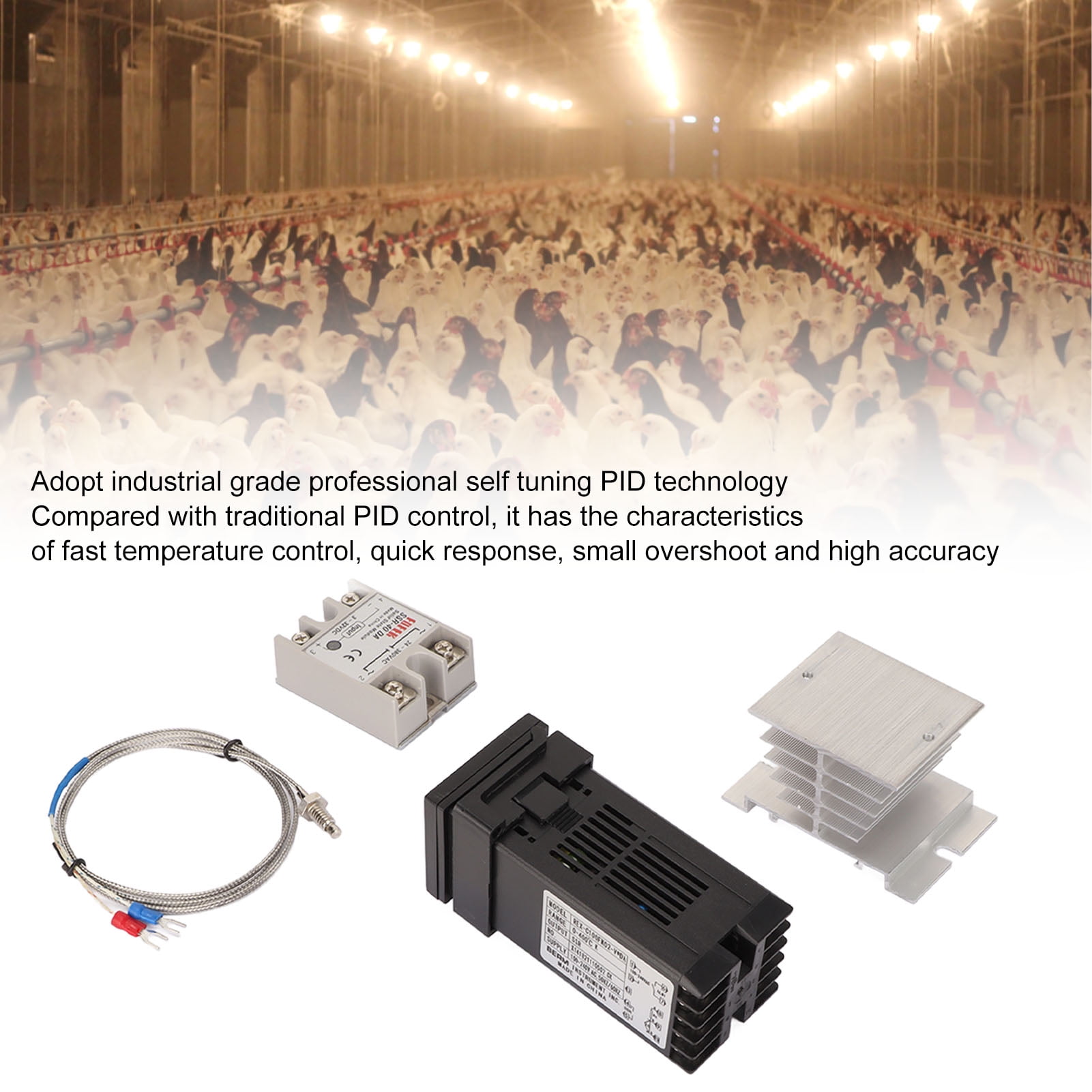

• PID: PID heater controller adopts industrial grade professional self tuning PID technology, which has fast temperature control, quick response, small overshoot and high accuracy compared with traditional PID control
• DURABLE PROBE: Digital PID temperature controller probe is made of stainless steel housing and resin sealing treatment, waterproof and rust free, and has a long service life
• EASY TO USE: Digital PID thermostat set is a practical thermostat, intelligent temperature control, simple operation can help the operator to get results
• MULTI FUNCTION: Digital PID temperature controller set is a multi function controller with quick response and high accuracy, with a dedicated microprocessor switching power supply and SMT

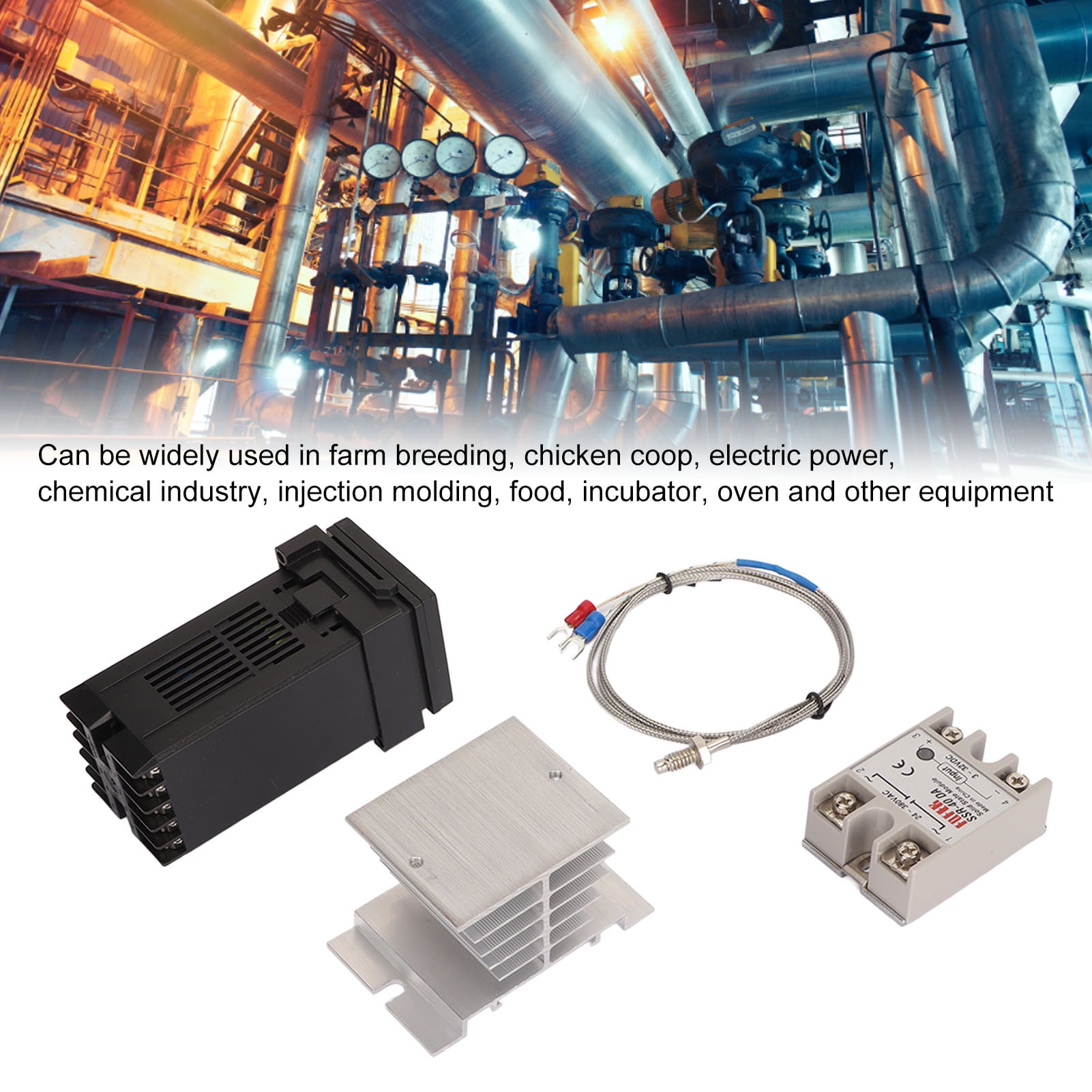

• WIDELY : PID temperature controller can be widely in farm breeding, chicken coop, electric power, chemical, injection molding, food, incubator, oven and other equipment
